Accueil Locks Mortise Locks 4530-35-201 628

4530-35-201 628

1-1/8" LH DEADLATCH

BG SKU: ADAM-453035201628
Brand Adams Rite
Calculating price...
QUANTITY

About this item

The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains thebolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Series Deadlocks and discontinued 4250 Deadlatches of same backset. Turn key or operate handle to retract spring-loaded Latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides. This listing: part 4530-35-201 628, in 628 Clear anodized finish.
res_AADSS1056953
Rehanding_Instructions___4510_4530_Deadlatch
Rehanding_Instructions___4510_4530_Deadlatch.pdf
Installation_Instructions___4510_4530_Deadlatch
Installation_Instructions___4510_4530_Deadlatch.pdf
Finish 628 US28 CL
Brand Adams Rite
Series 4530
Product Type Deadlatch
Finish 628 Clear anodized

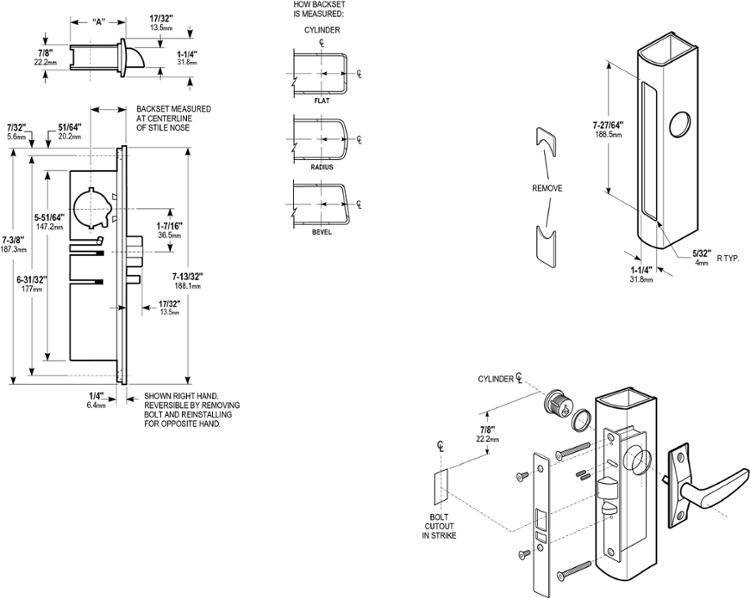

Cylinder Backset Options 7/8" [22.2 mm], 31/32" [24.6 mm], or 1-1/8" [28.6 mm] only.
Latchbolt All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2"[12.7 mm x 25.4 mm x 12.7 mm] throw.
Case Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mmx 147.6 mm x depth]. Depth varies by backset.
Faceplate Measures 1-1/4" x 7-13/32"[31.8 mm x 188.1 mm].
Strike Standard strike furnished is 4901-01 for flat jamb.
Shipping Weight 1-1/4 lbs [0.57 kg]
